Hello!
sudo zypper dup
sudo zypper in opi
opi codecs
sudo zypper in b43-firmware
sudo zypper in b43legacy-firmware
sudo zypper in broadcom-wl
after that i still cant access wifi.https://forums.opensuse.org/t/broadcom-firmware-is-needed-for-b43-but-i-have-no-network-an-easierwork-around/87844 ,
after that i discovered that my bluetooth also doesnt work
from research about Bluetooth problem i did this, but that also doesnt workecho "options hci_usb reset=1" | sudo tee -a /etc/modprobe.d/options
Basically i am stuck here, would really appreciate any help and ready to provide any outputs you desire
i have cable, so i can install anything you suggest, but my goal is to get wifi working, so i can give this notebook to another user, who is planning to use wifi. Hope somebody will be able to help me get this solved, because windows10 on this notebook works like 4 times slower than xfce
@ReLoneR Hi, what wifi device in the system, b43 and broadcom-wl are mutually exclusive.
What does the output from /sbin/lspci -nnk | grep -A3 "Network" and rfkill list show?
@malcolmlewis my bad, didnt know they are incompatible
Here are the outputs:
:~> /sbin/lspci -nnk | grep -A3 "Network"
07:00.0 Network controller [0280]: Broadcom Inc. and subsidiaries BCM43142 802.11b/g/n [14e4:4365] (rev 01)
Subsystem: Foxconn International, Inc. Device [105b:e071]
Kernel modules: wl
08:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS5209 PCI Express Card Reader [10ec:5209] (rev 01)
sudo rfkill list
[sudo] пароль для root:
0: sony-wifi: Wireless LAN
Soft blocked: no
Hard blocked: no
1: sony-bluetooth: Bluetooth
Soft blocked: no
Hard blocked: no
2: hci0: Bluetooth
Soft blocked: no
Hard blocked: no
@Sauerland sure, here it is:
S | Name | Type | Version | Arch | Repository
---+-------------------------+-------+--------------------------------------+--------+-----------
i+ | broadcom-wl | пакет | 6.30.223.271-1699.19.pm.168 | x86_64 | Packman
i | broadcom-wl-kmp-default | пакет | 6.30.223.271_k6.9.7_1-1699.19.pm.168 | x86_64 | Packman
i | broadcom-wl-ueficert | пакет | 6.30.223.271-1699.19.pm.168 | x86_64 | Packman
:~> mokutil --sb-state
SecureBoot enabled
Oh, second one is a surprise for me, i thought i disabled secure boot in bios.
here is the output of nmcli, it doesnt even show wifi device:
nmcli
enp14s0: подключено к Проводное подключение 1
"Realtek RTL8111/8168/8211/8411"
ethernet (r8169), 3C:07:71:59:FB:F3, аппаратное обеспечение, mtu 1500
ip4 по умолчанию
inet4 192.168.0.108/24
route4 192.168.0.0/24 metric 100
route4 default via 192.168.0.1 metric 100
inet6 fe80::fb:c948:bbf3:96aa/64
route6 fe80::/64 metric 1024
lo: подключено (внешнее) к lo
"lo"
loopback (unknown), 00:00:00:00:00:00, программное обеспечение, mtu 65536
inet4 127.0.0.1/8
inet6 ::1/128
DNS configuration:
servers: 192.168.0.1
interface: enp14s0
As root:dmesg | grep -Ei 'broadcom|wl|firmware|reject'
# dmesg | grep -Ei 'broadcom|wl|firmware|reject'
[ 0.045205] [ T0] CPU topo: Rejected CPUs 6
[ 5.154217] [ T383] usb 1-1.2: Manufacturer: Broadcom Corp
[ 6.370587] [ T331] ACPI: video: [Firmware Bug]: ACPI(PEGP) defines _DOD but not _DOS
[ 18.462662] [ T537] Loading of module with unavailable key is rejected
[ 18.621839] [ T70] Bluetooth: hci0: BCM: firmware Patch file not found, tried:
[ 61.995901] [ T1675] nouveau 0000:01:00.0: Direct firmware load for nouveau/nv108_fuc084 failed with error -2
[ 61.995980] [ T1675] nouveau 0000:01:00.0: Direct firmware load for nouveau/nv108_fuc084d failed with error -2
[ 61.995989] [ T1675] nouveau 0000:01:00.0: msvld: unable to load firmware data
I think, secure boot is running.
post:
mokutil --list-enrolled
I guess it can be secure boot even though in bios it says [Disabled], because on these notebook it has some build-in sony software which pop ups when i choose “EFI settings” in tumbleweed grub menu → from there i click bios settings with touchpad. Going to check maybe there is another additional toggle somewhere
:~> mokutil --list-enrolled
[key 1]
Owner: 605dab50-e046-4300-abb6-3dd810dd8b23
SHA1 Fingerprint: 46:59:83:8c:82:03:fe:15:52:ad:19:e1:86:09:db:21:7e:3a:d2:4f
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 1 (0x1)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN=openSUSE Secure Boot CA, C=DE, L=Nuremberg, O=openSUSE Project/emailAddress=build@opensuse.org
Validity
Not Before: Aug 26 16:12:07 2013 GMT
Not After : Jul 22 16:12:07 2035 GMT
Subject: CN=openSUSE Secure Boot CA, C=DE, L=Nuremberg, O=openSUSE Project/emailAddress=build@opensuse.org
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
Public-Key: (2048 bit)
Modulus:
00:de:df:61:92:7a:a4:fe:83:d1:7d:3b:68:0e:b1:
a7:f0:4e:92:93:fc:47:3e:70:2d:4e:88:dc:9a:9e:
fa:33:b4:a6:db:0e:23:c1:0d:a8:c1:d5:65:04:84:
04:ff:3a:48:18:4f:39:32:e4:ca:4e:f9:04:9e:9f:
0f:cd:20:5d:61:ab:a7:00:d8:a5:ff:2b:7f:be:e8:
47:c3:2f:5b:02:c8:bb:de:8e:1a:e9:46:d3:86:ef:
ff:88:99:90:eb:10:89:b8:8b:3f:3e:a8:07:c6:55:
7a:6e:d3:5f:fc:83:3c:3d:16:ed:26:c5:13:73:92:
b1:70:1e:22:95:c8:00:6c:25:76:46:f1:a2:d9:d0:
b0:98:68:0f:a7:2d:b1:0d:67:89:ca:94:4a:ea:12:
c5:91:55:76:7f:6c:7a:2e:f9:18:89:9f:f8:f4:24:
43:d5:35:6a:cb:00:0e:2e:ed:4b:e2:5d:09:d8:1b:
97:70:99:9e:5a:6f:a6:81:a8:9d:a9:58:76:7d:69:
71:82:d3:ba:3a:96:43:9b:f0:da:15:c6:4e:e9:c8:
15:b9:e9:cb:c7:e4:71:ce:ea:10:1b:6b:c4:2a:70:
01:a9:52:b4:17:de:00:52:cf:7d:e4:fd:0f:4d:03:
18:b2:90:28:d4:6f:c4:ae:56:bc:36:60:49:46:8b:
6b:0b
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
68:42:60:0D:E2:2C:4C:47:7E:95:BE:23:DF:EA:95:13:E5:97:17:62
X509v3 Authority Key Identifier:
keyid:68:42:60:0D:E2:2C:4C:47:7E:95:BE:23:DF:EA:95:13:E5:97:17:62
DirName:/CN=openSUSE Secure Boot CA/C=DE/L=Nuremberg/O=openSUSE Project/emailAddress=build@opensuse.org
serial:01
X509v3 Key Usage: critical
Digital Signature, Certificate Sign, CRL Sign
Signature Algorithm: sha256WithRSAEncryption
Signature Value:
8a:a3:89:c2:8e:d9:f9:82:0b:f3:33:ce:e9:19:17:17:a3:65:
80:cd:33:ae:06:51:56:29:b6:38:87:7b:f4:9d:fc:28:8e:aa:
e0:53:12:0e:3a:60:c7:06:d8:3a:61:76:3b:77:08:f4:94:a4:
8c:7c:47:3a:99:d8:84:9b:17:cc:20:62:2e:e2:76:e4:c6:36:
0d:26:e9:2e:53:35:0a:fb:3a:35:93:45:c3:93:82:c1:0b:f3:
08:e9:57:1f:59:37:a9:d0:6c:69:fb:68:ea:7f:3b:af:d3:f7:
59:27:8e:d4:c7:96:73:f4:0c:0a:f7:3e:e4:af:6c:8c:c7:7a:
6f:09:79:f4:41:1f:e3:6f:11:fb:3e:6c:b1:a0:7b:e4:92:b7:
ca:f9:32:f5:de:c3:b0:73:7d:e3:b3:82:5d:cd:ec:61:dc:fe:
0c:3e:c6:b5:e7:6c:2d:5d:92:73:ff:ed:aa:6a:a9:9b:66:9e:
5e:3a:6d:70:b0:31:c0:ce:df:2f:21:10:68:0c:87:f3:77:a0:
33:31:0a:0f:15:f6:ee:32:88:c5:9a:53:71:cd:0d:1a:a1:28:
89:d0:bf:f6:56:ac:4b:3b:36:06:2b:01:c5:eb:e5:dc:72:83:
3d:94:ac:28:83:13:fb:c1:5d:27:9c:13:f6:32:5f:f6:1f:4a:
b7:3e:53:8a

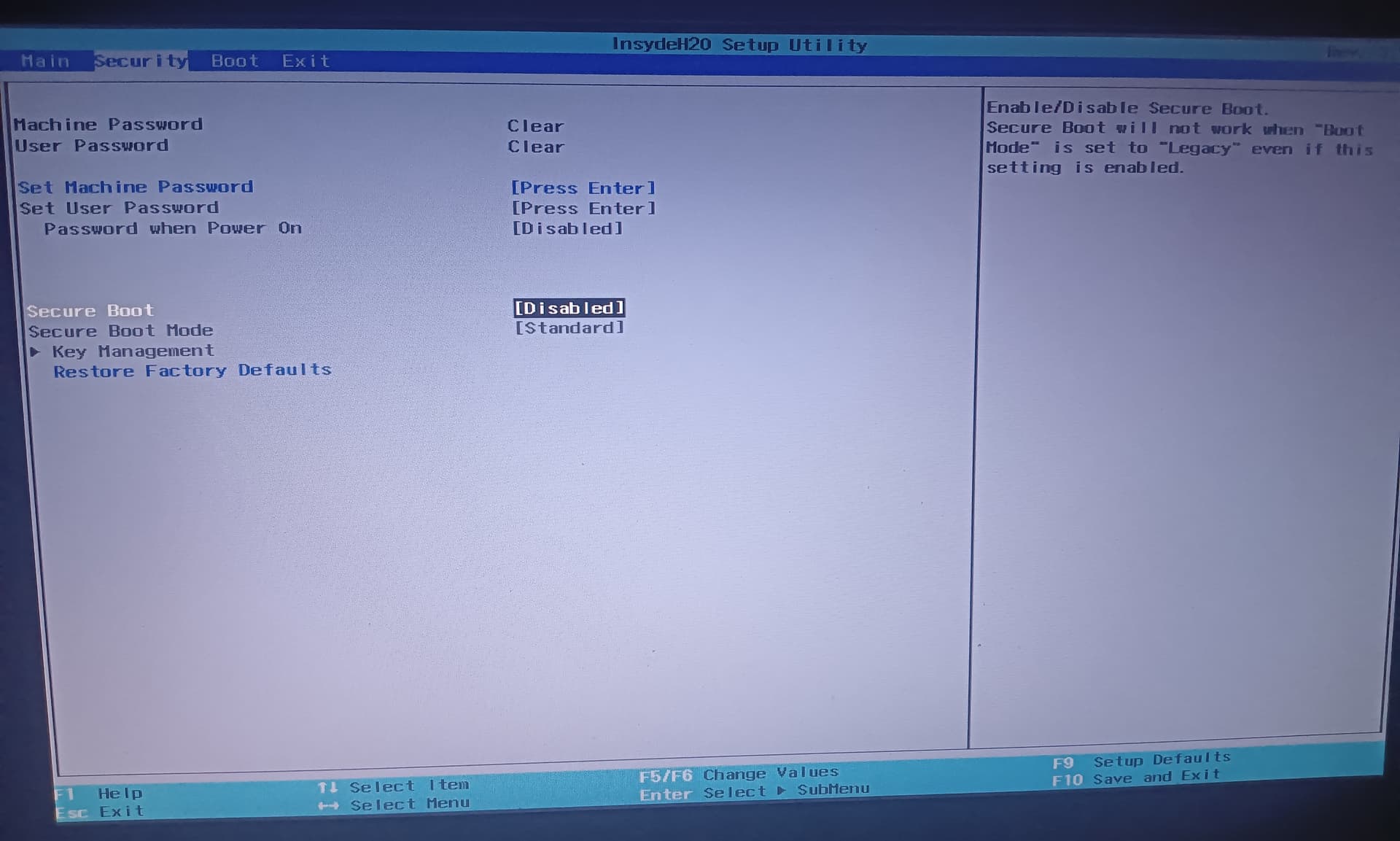

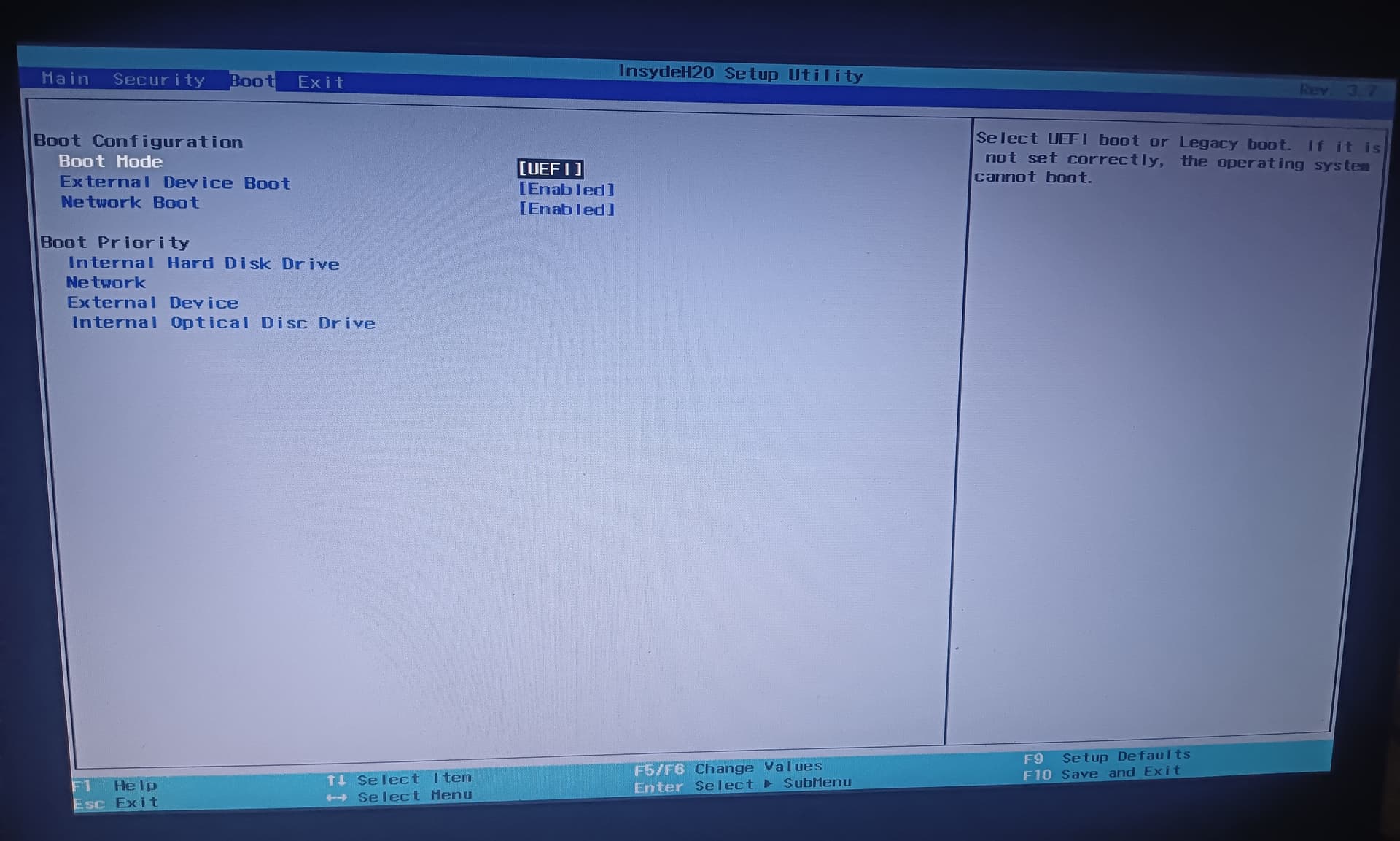

Sorry for the image quality, but no, there is nothing useful regarding boot in this sony software, in bios i have disabled and uefi
Try as root:mokutil --import /etc/uefi/certs/7F7200B4.crt
Reboot and if you get a blue mok display:Mok Example
1 Like
@Sauerland thank you so much! It finally works! (yeah, i got mok screen and did Enroll MOK option. After booting up wifi and bluetooth issue solved! thank you again
