Sagicc
October 24, 2023, 1:11pm
1
Hello community,
Desktop is Lenovo ThinkStation P3 Tower
In BIOS mode is Auto that run first on PGD then IGD. For now when I plug a cable into motherboard DP no signal.https://bbs.archlinux.org/viewtopic.php?id=243402
When use lspci IGD got this
00:02.0 Display controller: Intel Corporation Raptor Lake-S GT1 [UHD Graphics 770] (rev 04)
Thank you.
@Sagicc Hi and welcome to the Forum
My current Tumbleweed setup uses two Nvidia cards… T400 for graphics, Tesla P4 for compute.
Sagicc
October 24, 2023, 1:34pm
3
@malcolmlewis Hi and thak you!
I installed first intel, add NVIDIA and install headless NVIDIA drivers (without video drivers)
Here is a list
Device: 1
Thank you!
P.S. Lucky you with two
@Sagicc So did you test the setup?
For example;
glxinfo | grep "OpenGL renderer"
OpenGL renderer string: NVIDIA T400/PCIe/SSE2
__GLX_VENDOR_LIBRARY_NAME=nvidia __NV_PRIME_RENDER_OFFLOAD=1 __VK_LAYER_NV_optimus=NVIDIA_only glxinfo | grep "OpenGL renderer"
OpenGL renderer string: Tesla P4/PCIe/SSE2
switcherooctl glxinfo | grep "OpenGL renderer"
OpenGL renderer string: Tesla P4/PCIe/SSE2
zypper se -i switcheroo
S | Name | Summary | Type
---+--------------------+-----------------------------------------------------+--------
i+ | switcheroo-control | D-Bus service to check the availability of dual-GPU | package
systemctl status switcheroo-control.service
● switcheroo-control.service - Switcheroo Control Proxy service
Loaded: loaded (/usr/lib/systemd/system/switcheroo-control.service; enabled; preset: disabled)
Active: active (running) since Mon 2023-10-23 10:40:05 CDT; 22h ago
Main PID: 1562 (switcheroo-cont)
Tasks: 4 (limit: 5529)
CPU: 1.361s
CGroup: /system.slice/switcheroo-control.service
└─1562 /usr/libexec/switcheroo-control
Oct 23 10:40:05 systemd[1]: Starting Switcheroo Control Proxy service...
Oct 23 10:40:05 systemd[1]: Started Switcheroo Control Proxy service.
Sagicc
October 24, 2023, 3:09pm
5
@malcolmlewis Here is what I get
During installation blacklisted
Thank you!
@Sagicc never worried about blacklisting the drivers…
Sagicc
October 24, 2023, 4:32pm
7
@malcolmlewis Yes. Still trying to set it work, when adding 20-intel.conf in /etc/X11/xorg.conf.d KDE won’t start…
How do you set to work? I try to find it…
Thank you!
@Sagicc there should be no requirement for any xorg conf files for either nvidia or intel (just use the defaults).
Can you show the output from;
cat /proc/cmdline
/sbin/lspci -nnk | grep -EA3 "VGA|Display|3D"
lsinitrd | grep nouveau
Sagicc
October 24, 2023, 4:55pm
9
@malcolmlewis here is an output
cat /proc/cmdline
BOOT_IMAGE=/boot/vmlinuz-6.5.8-1-default root=/dev/mapper/system-root splash=silent mitigations=auto quiet security=apparmor nosimplefb=1
sbin/lspci -nnk | grep -EA3 "VGA|Display|3D"
00:02.0 Display controller [0380]: Intel Corporation Raptor Lake-S GT1 [UHD Graphics 770] [8086:a780] (rev 04)
DeviceName: Onboard - Video
Subsystem: Lenovo Device [17aa:1064]
Kernel driver in use: i915
--
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GA102GL [RTX A5500] [10de:2233] (rev a1)
Subsystem: Lenovo Device [17aa:165a]
Kernel driver in use: nvidia
Kernel modules: nouveau, nvidia_drm, nvidia
lsinitrd | grep nouveau
rwxr-xr-x 2 root root 0 Oct 22 21:13 usr/lib/modules/6.5.8-1-default/kernel/drivers/gpu/drm/nouveau
-rw-r--r-- 1 root root 1321579 Oct 22 21:13 usr/lib/modules/6.5.8-1-default/kernel/drivers/gpu/drm/nouveau/nouveau.ko.zst
@Sagicc I suspect since no video driver that nouveau is not blacklisted… I don’t use nosimplefb=1 but do use vidia_drm.modeset=1 and also a /etc/modprobe.d/50-nvidia.conf containing;
blacklist nouveau
options nouveau modeset=0
If you add the blacklist, then need to run dracut -f --regenerate-all aftwerwards.
What about nvidia=smi output, this should show compute in use…
Sagicc
October 24, 2023, 5:05pm
11
Thank you for your time and help.
Here is smi
+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 535.113.01 Driver Version: 535.113.01 CUDA Version: 12.2 |
|-----------------------------------------+----------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+======================+======================|
| 0 NVIDIA RTX A5500 Off | 00000000:01:00.0 On | Off |
| 30% 25C P8 5W / 230W | 12MiB / 24564MiB | 0% Default |
| | | N/A |
+-----------------------------------------+----------------------+----------------------+
+---------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=======================================================================================|
| No running processes found |
+---------------------------------------------------------------------------------------+
Sagicc
October 24, 2023, 5:06pm
12
@malcolmlewis boot is defined default
@Sagicc what about if you fire up a terminal or two with switcherooctl and check smi output;
For example, I started alacritty and libreoffice calc here;
nvidia-smi
Tue Oct 24 12:10:44 2023
+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 545.23.06 Driver Version: 545.23.06 CUDA Version: 12.3 |
|-----------------------------------------+----------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+======================+======================|
| 0 Tesla P4 On | 00000000:03:00.0 Off | 0 |
| N/A 42C P0 23W / 75W | 126MiB / 7680MiB | 0% Default |
| | | N/A |
+-----------------------------------------+----------------------+----------------------+
| 1 NVIDIA T400 On | 00000000:04:00.0 On | N/A |
| 38% 40C P5 N/A / 31W | 718MiB / 2048MiB | 1% Default |
| | | N/A |
+-----------------------------------------+----------------------+----------------------+
+---------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=======================================================================================|
| 0 N/A N/A 2089 G /usr/bin/Xorg.bin 10MiB |
| 0 N/A N/A 21416 G alacritty 8MiB |
| 0 N/A N/A 21513 C ...b64/libreoffice/program/soffice.bin 104MiB |
| 1 N/A N/A 2089 G /usr/bin/Xorg.bin 350MiB |
| 1 N/A N/A 2291 G /usr/bin/gnome-shell 122MiB |
| 1 N/A N/A 3731 G ...,WinRetrieveSuggestionsOnlyOnDemand 77MiB |
| 1 N/A N/A 13755 C+G ...8262231,17662243796356486310,262144 89MiB |
+---------------------------------------------------------------------------------------+
Alacritty using offload with graphics, libreoffice calc using compute. Chrome uses compute as well (but on the T400).
Sagicc
October 24, 2023, 5:18pm
14

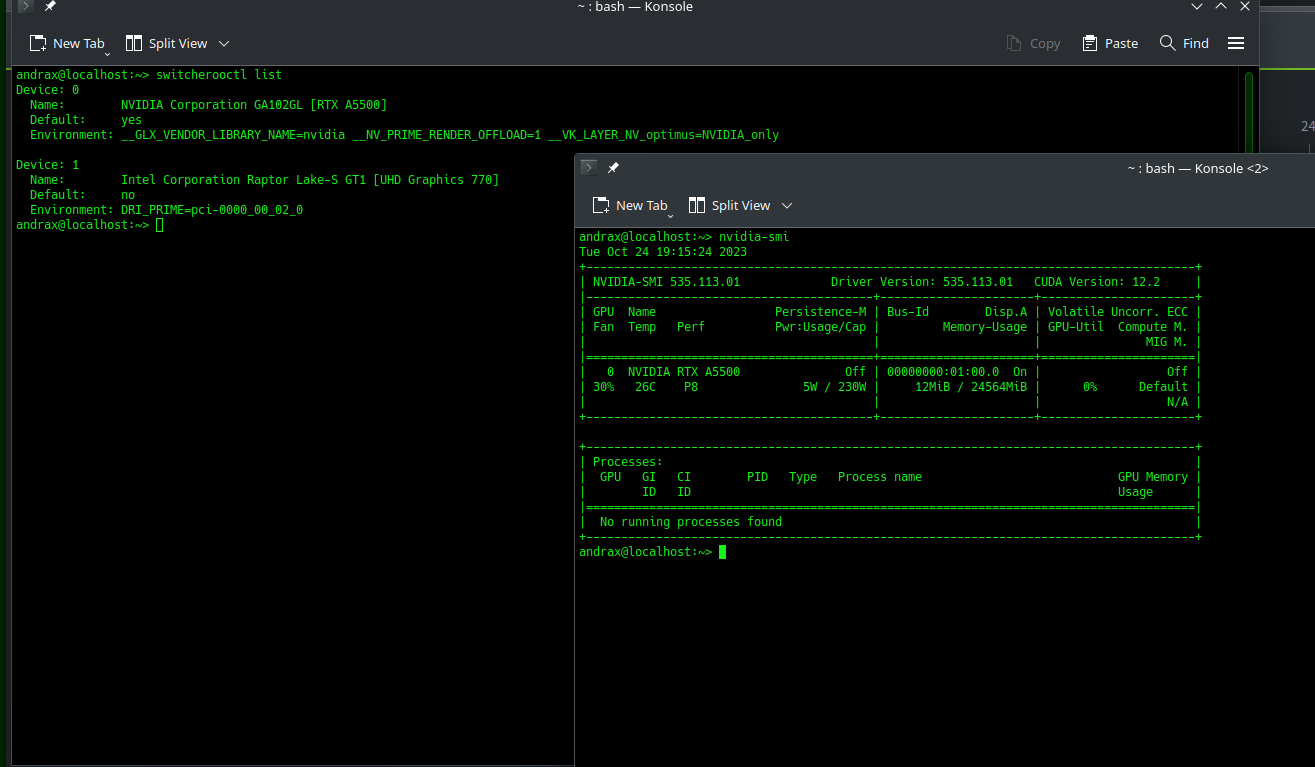

@malcolmlewis here is a screenshot
The main problem is that there is no signal on motherboard as I have on CachyOS
Thank you!
@Sagicc should not need any signal, on my past setup with intel/nvidia I had three nvidia cards (just GT710’s) running as compute…
It knows the card is there and the drivers present, not sure if nvtop will show more… you could try installing that and see.
Sagicc
October 24, 2023, 5:27pm
16

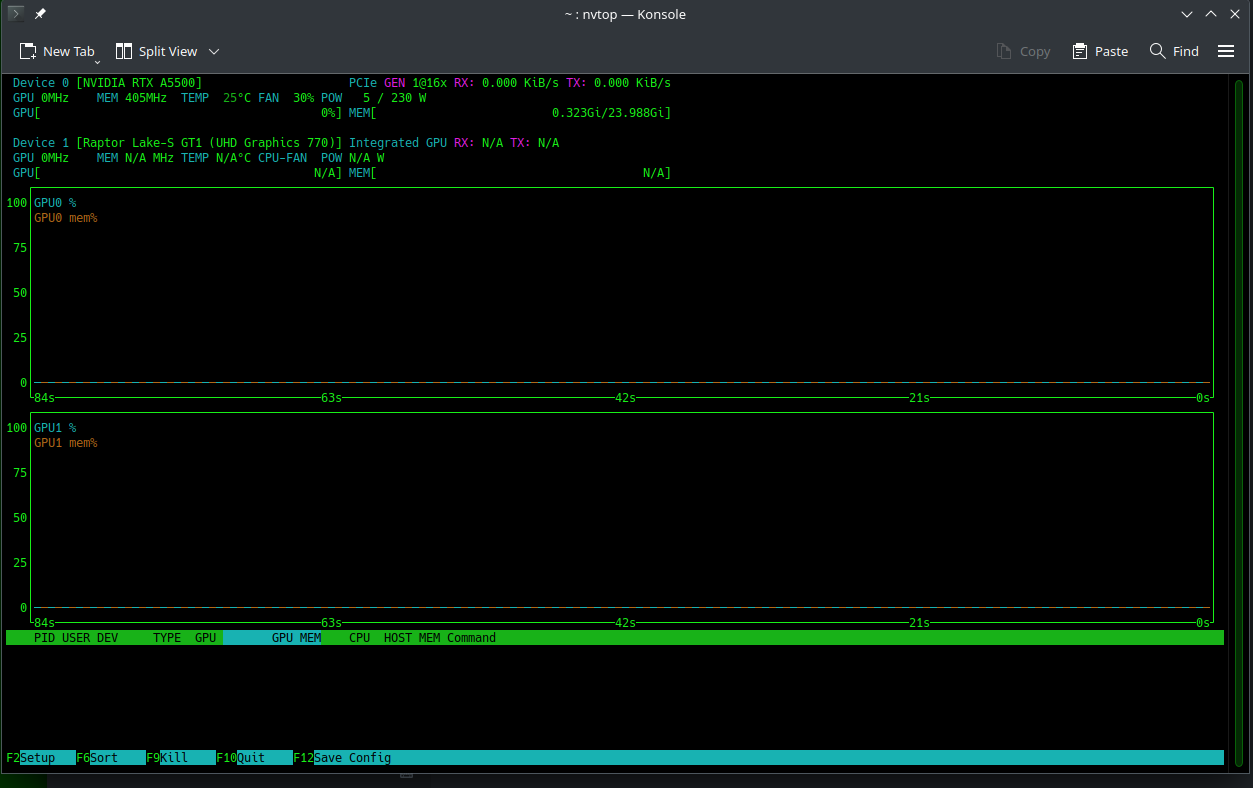

@malcolmlewis nvtop
This version of Nvtop is missing support for reporting Intel GPU memory, power, fan and temperature
<Don't Show Again> <Ok>
Press Enter to select, arrows ">" and "<" to switch options
@Sagicc If it were me, I’d be looking at dumping the rpms and using the latest cuda/driver install run file… You need to install gcc and kernel-default-devel packages…
wget https://developer.download.nvidia.com/compute/cuda/12.3.0/local_installers/cuda_12.3.0_545.23.06_linux.run
chmod 0755 cuda_12.3.0_545.23.06_linux.run
Boot to multi-user target and install that at root user, just driver and cuda… after you accept the license.
