sensors3, lm_sensors, strange...understing...

English Hardware
#1

hello

i have installed 2 linux: opensuse 13.2 kde4 64bit and elementaryos 64 freya.

opensuse and elementary worked as FINE.

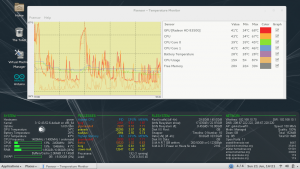

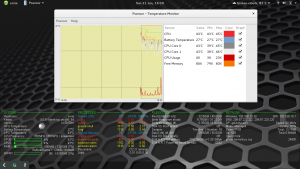

elementatyos installed psensors, done: sensors-detect and result: 1 cpu, 1 radeon, 1 motherboard (k10), 1 rpm fan (cpu),

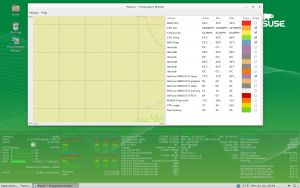

opensuse 13.2 installed sensors (lm_sensors) and plasmoid kde4 worked but 1 sensor: motherboard (k10), not radeon, not cpu, not fan rpm cpu…why?

i find file of elementaryos:
/etc/sensors3.conf and /etc/sensors3.conf (opensuse) are same code, but plasmoid kde temperature works with only /etc/sysconf/lm_sensors ?

code of lm_sensors:

# Generated by sensors-detect on Sun Jun 14 16:04:11 2015
## Path: Hardware/Sensors
## Description:         Defines the modules to used
## Type:                string
## ServiceRestart:      lm_sensors
## Default:             ""
#
# This file is sourced by /etc/init.d/lm_sensors and defines the modules to
# be loaded/unloaded.
#
# The format of this file is a shell script that simply defines variables:
# HWMON_MODULES for hardware monitoring driver modules, and optionally
# BUS_MODULES for any required bus driver module (for example for I2C or SPI).

HWMON_MODULES="it87"

and code sensors3.conf

# libsensors configuration file
# -----------------------------
#
# This default configuration file only includes statements which do not
# differ from one mainboard to the next. Only label, compute and set
# statements for internal voltage and temperature sensors are included.
#
# In general, local changes should not be added to this file, but rather
# placed in custom configuration files located in /etc/sensors.d. This
# approach makes further updates much easier.
#
# Such custom configuration files for specific mainboards can be found at
# http://www.lm-sensors.org/wiki/Configurations

chip "lm78-*" "lm79-*" "lm80-*" "lm96080-*"

    label temp1 "M/B Temp"


chip "w83792d-*"

    label in0 "VcoreA"
    label in1 "VcoreB"
    label in6 "+5V"
    label in7 "5VSB"
    label in8 "Vbat"

    set in6_min  5.0 * 0.90
    set in6_max  5.0 * 1.10
    set in7_min  5.0 * 0.90
    set in7_max  5.0 * 1.10
    set in8_min  3.0 * 0.90
    set in8_max  3.0 * 1.10


chip "w83793-*"

    label in0 "VcoreA"
    label in1 "VcoreB"
    label in7 "+5V"
    label in8 "5VSB"
    label in9 "Vbat"

    set in7_min  5.0 * 0.90
    set in7_max  5.0 * 1.10
    set in8_min  5.0 * 0.90
    set in8_max  5.0 * 1.10
    set in9_min  3.0 * 0.90
    set in9_max  3.0 * 1.10


chip "w83795g-*" "w83795adg-*"

    label in12 "+3.3V"
    label in13 "3VSB"
    label in14 "Vbat"

    set in12_min  3.3 * 0.90
    set in12_max  3.3 * 1.10
    set in13_min  3.3 * 0.90
    set in13_max  3.3 * 1.10
    set in14_min  3.0 * 0.90
    set in14_max  3.3 * 1.10


chip "via686a-*"

    label in0 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in4_min 12.0 * 0.90
    set in4_max 12.0 * 1.10


chip "adm1025-*" "ne1619-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"
    label in5 "VCC"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10
# Depending on how your chip is hardwired, you may or may not have
# +12V readings.
#    set in4_min 12.0 * 0.90
#    set in4_max 12.0 * 1.10

    label temp1 "CPU Temp"
    label temp2 "M/B Temp"


chip "lm87-*" "adm1024-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in4_min 12.0 * 0.90
    set in4_max 12.0 * 1.10

    label temp1 "M/B Temp"
    label temp2 "CPU Temp"


chip "it87-*" "it8712-*" "it8716-*" "it8718-*" "it8720-*"

    label in8 "Vbat"


chip "fscpos-*" "fscher-*"
#FSC "Hermes"

    label in0 "+12V"
    label in1 "+5V"
    label in2 "Vbat"

    label temp1 "CPU Temp"
    label temp2 "M/B Temp"
    label temp3 "Aux Temp"


chip "fscscy-*"
#FSC "Scylla"

    label in0 "+12V"
    label in1 "+5V"
    label in2 "+3.3V"

    label temp1 "CPU0 Temp"
    label temp2 "CPU1 Temp"
    label temp3 "M/B Temp"
    label temp4 "Aux Temp"


chip "fschds-*"
# Fujitsu Technology Solutions, "Hades"-Chip

# Temperatures
    label temp1 "CPU Temp"
    label temp2 "Super I/O Temp"
    label temp3 "System Temp"

# Fans
    label fan1 "PSU Fan"
    label fan2 "CPU Fan"
    label fan3 "System FAN2"
    label fan4 "System FAN3"
    label fan5 "System FAN4"

# Voltages
    label in0 "+12V"
    label in1 "+5V"
    label in2 "Vbat"

chip "fscsyl-*"
# Fujitsu Technology Solutions, "Syleus"-Chip

# Temperatures
    label temp1 "CPU Temp"
    label temp4 "Super I/O Temp"
    label temp5 "Northbridge Temp"

# Fans
    label fan1 "CPU Fan"
    label fan2 "System FAN2"
    label fan3 "System FAN3"
    label fan4 "System FAN4"
    label fan7 "PSU Fan"

# Voltages
    label in0 "+12V"
    label in1 "+5V"
    label in2 "Vbat"
    label in3 "+3.3V"
    label in5 "+3.3V-Aux"

chip "vt1211-*"

    label in5 "+3.3V"

    label temp2 "SIO Temp"


chip "vt8231-*"

    label in5 "+3.3V"


chip "smsc47m192-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"
    label in5 "VCC"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in4_min 12.0 * 0.90
    set in4_max 12.0 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10

    label temp1 "SIO Temp"


chip "lm85-*" "lm85b-*" "lm85c-*" "adm1027-*" "adt7463-*" "adt7468-*" \
     "emc6d100-*" "emc6d102-*" "emc6d103-*" "emc6d103s-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
# Depending on how your chip is hardwired, you may or may not have
# +12V readings.
#    set in4_min 12.0 * 0.90
#    set in4_max 12.0 * 1.10

    label temp2 "M/B Temp"


chip "emc6w201-*"

    label in2 "+3.3V"
    label in3 "+5V"

    label temp6 "M/B Temp"


chip "pc87365-*" "pc87366-*"

# Voltage inputs

    label in7 "3VSB"
    label in8 "VDD"
    label in9 "Vbat"
    label in10 "AVDD"

    compute in7   @*2, @/2
    compute in8   @*2, @/2
    compute in10  @*2, @/2

# These are the operating conditions as recommended by National
# Semiconductor
    set in7_min   3.0
    set in7_max   3.6
    set in8_min   3.0
    set in8_max   3.6
    set in10_min  3.0
    set in10_max  3.6
# Depending on the hardware setup, the battery voltage may or may not
# be monitored.
#    set in9_min   2.4
#    set in9_max   3.6

    label temp3 "SIO Temp"

    set temp3_min    0
    set temp3_max   70
    set temp3_crit  85


chip "adm1030-*" "adm1031-*"

    label temp1 "M/B Temp"


chip "w83627thf-*"

    label in3 "+5V"
    label in7 "5VSB"
    label in8 "Vbat"

    # Internal resistors
    compute in3  @ * (1 + 34/51), @ / (1 + 34/51)
    compute in7  @ * (1 + 34/51), @ / (1 + 34/51)

    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in7_min  5.0 * 0.90
    set in7_max  5.0 * 1.10
# The battery voltage may or may not be monitored.
#    set in8_min  3.0 * 0.90
#    set in8_max  3.0 * 1.10


chip "w83627ehf-*" "w83627dhg-*" "w83667hg-*" "nct6775-*" "nct6776-*"

    label in0 "Vcore"
    label in2 "AVCC"
    label in3 "+3.3V"
    label in7 "3VSB"
    label in8 "Vbat"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  3.3 * 0.90
    set in3_max  3.3 * 1.10
    set in7_min  3.3 * 0.90
    set in7_max  3.3 * 1.10
    set in8_min  3.0 * 0.90
    set in8_max  3.3 * 1.10


chip "w83627uhg-*"

    label in2 "AVCC"
    label in3 "+5V"
    label in7 "5VSB"
    label in8 "Vbat"

    set in2_min  5.0 * 0.90
    set in2_max  5.0 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in7_min  5.0 * 0.90
    set in7_max  5.0 * 1.10
    set in8_min  3.0 * 0.90
    set in8_max  3.3 * 1.10


chip "f71805f-*"

    label in0 "+3.3V"

    set in0_min  3.3 * 0.90
    set in0_max  3.3 * 1.10


chip "f71872f-*"

    label in0 "+3.3V"
    label in9 "Vbat"
    label in10 "3VSB"

    set in0_min   3.3 * 0.90
    set in0_max   3.3 * 1.10
    set in9_min   3.0 * 0.90
    set in9_max   3.0 * 1.10
    set in10_min  3.3 * 0.90
    set in10_max  3.3 * 1.10


chip "k8temp-*"

    label temp1 "Core0 Temp"
    label temp2 "Core0 Temp"
    label temp3 "Core1 Temp"
    label temp4 "Core1 Temp"


chip "dme1737-*"

    label in0 "5VSB"
    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"
    label in5 "3VSB"
    label in6 "Vbat"

    label temp2 "SIO Temp"

    set in0_min  5.0 * 0.90
    set in0_max  5.0 * 1.10
    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in4_min 12.0 * 0.90
    set in4_max 12.0 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10
    set in6_min  3.0 * 0.90
    set in6_max  3.0 * 1.10


chip "sch311x-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"
    label in5 "3VSB"
    label in6 "Vbat"

    label temp2 "SIO Temp"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
    set in4_min 12.0 * 0.90
    set in4_max 12.0 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10
    set in6_min  3.0 * 0.90
    set in6_max  3.0 * 1.10


chip "sch5027-*"

    label in0 "5VSB"
    label in1 "Vcore"
    label in2 "+3.3V"
    label in5 "3VSB"
    label in6 "Vbat"

    label temp2 "SIO Temp"

    set in0_min  5.0 * 0.90
    set in0_max  5.0 * 1.10
    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10
    set in6_min  3.0 * 0.90
    set in6_max  3.0 * 1.10


chip "sch5127-*"

    label in2 "+3.3V"
    label in5 "3VSB"
    label in6 "Vbat"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in5_min  3.3 * 0.90
    set in5_max  3.3 * 1.10
    set in6_min  3.0 * 0.90
    set in6_max  3.0 * 1.10


chip "f71808e-*" "f71808a-*" "f71862fg-*" "f71869-*" "f71869a-*" "f71882fg-*" \
     "f71889fg-*" "f71889ed-*" "f71889a-*"

    label in0 "+3.3V"
    label in7 "3VSB"
    label in8 "Vbat"

    compute in0  @*2, @/2
    compute in7  @*2, @/2
    compute in8  @*2, @/2


chip "f71858fg-*" "f8000-*"

    label in0 "+3.3V"
    label in1 "3VSB"
    label in2 "Vbat"

    compute in0  @*2, @/2
    compute in1  @*2, @/2
    compute in2  @*2, @/2


chip "f81865f-*"

    label in0 "+3.3V"
    label in5 "3VSB"
    label in6 "Vbat"

    compute in0  @*2, @/2
    compute in5  @*2, @/2
    compute in6  @*2, @/2


chip "adt7473-*" "adt7475-*"

    label in2 "+3.3V"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10

    label temp2 "Board Temp"


chip "adt7476-*" "adt7490-*"

    label in1 "Vcore"
    label in2 "+3.3V"
    label in3 "+5V"
    label in4 "+12V"

    set in2_min  3.3 * 0.90
    set in2_max  3.3 * 1.10
    set in3_min  5.0 * 0.90
    set in3_max  5.0 * 1.10
# Depending on how your ADT7476 is hardwired, you may or may not have
# +12V readings.
#    set in4_min 12.0 * 0.90
#    set in4_max 12.0 * 1.10

    label temp2 "M/B Temp"

why plasmoid kde4 show only 1 sensor: k10 (motherboard)???
nothing cpu, radeon…???

elementaryos freya worked more sensors…why?

i did tested xsensors on opensuse worked but one sensor k10 (motherboard, nothign cpu, radeon…)???

maybe problem for lm_sensors?

opensuse i have driver close source AMD/ATI gpu, i dont know why not all sensors…

do you have suggest me?

#2

Elemntaryos is based on ubuntu (Gnome) and openSUSE (KDE). So there are different Programms that use different Sensors?

Compare on both:

sensors
#3

hello

i know for gnome and kde but i did test xsensors of opensuse (worked) but not all sensors…this is strange? and xsensors on elementaryos worked many sensors…

for this reason i’m not understand what is problem…
maybe that lm_sensors has 1 sensor…? HWMON_MODULES=“it87”

#4

Did you run

# sensors-detect

on your openSUSE system? This is needed to pull in the necessary modules.

#5

yes i did and result output /etc/sensors3.config…
also i did sensors-detect from elementaryos, and output sensors3.conf same of opensuse output…
for me is strange… or bug…

#6

Actually the file “/etc/sensors3.conf” is part of the libsensors package. It contains real-life names and other info for the command “sensors” to use in its output, like “CPU Fan” and “VBat” instead of names like “fan1” and “in0”, etc. It is not generated when you run “sensors-detect”. Sensors-detect tries to find all the hardware sensors on your system, matches them to the proper kernel modules, and then creates the file “/etc/init.d/lm_sensors” which should load the needed modules on next reboot. For some reason, “sensors-detect” is only finding your motherboard sensor (“it87”) on your openSUSE system.

Can you post the “/etc/init.d/lm_sensors” file that is created when you run “sensors-detect” on your elementaryos system?

#7

http://www.pastefile.com/4nsB7M
see screenshot,

after sensors-detect and output to /etc/module

# /etc/modules: kernel modules to load at boot time.
#
# This file contains the names of kernel modules that should be loaded
# at boot time, one per line. Lines beginning with "#" are ignored.
# Parameters can be specified after the module name.

lp
rtc

# Generated by sensors-detect on Sun Jun 14 15:35:55 2015
# Chip drivers
it87

# Generated by sensors-detect on Sun Jun 14 15:52:52 2015
# Chip drivers
it87

# Generated by sensors-detect on Wed Jun 17 22:36:16 2015
# Chip drivers
it87

there are many sensors from elementary…instead opensuse not work all sensors its strange or bug?

#8

Your screenshot indicates that “sensors-detect” is finding both your motherboard sensors (“it87”) and your cpu sensors (“k10temp”).

I think the problem is that the plasma widget for temperature monitoring gets its information only from lm_sensors. lm_sensors does not see GPU monitoring information or HDD information so that is why the plasma widget does not report these. “Psensor” is able to get monitoring info not only from lm_sensors but from these other sources as well. So what your are seeing is not a bug but more of a limitation in the capabilities of the plasma widget.

I found psensor packaged for openSUSE (http://software.opensuse.org/search?q=psensor&baseproject=ALL) but when I tried to run it I got an error. You might have better luck.

You could also check out gkrellm. It’s not a plasmoid but it is a widget that can reside on your desktop and it monitors just about everything.

#9

also me ERROR output…

> psensor

(psensor:30104): GLib-GIO-ERROR **: Settings schema ‘psensor’ is not installed

Rilevato trace/breakpoint

opensuse 13.2 cant fix it…?
elementaryos worked…

i’m sad for opensuse problem issue…

i installed gkrellm, is not bad but good…
but not amd gpu, motherboard

i will ask to KDE4 forum?

#10

I managed to get psensor working.

First, download the source file “psensor-1.1.3-tar.gz” from the developer’s site http://wpitchoune.net/psensor/files/.

In yast software management, install package “libsensors4-devel”.

Extract the psensors source archive to a folder and then compile and install it ("./configure", “make” and then as root “make install”).

For some reason this process did not get me an executable “psensor” but when I then installed the psensor package for openSUSE (“psensor-1.1.3-14.1.x86_64.rpm”) it ran without the “Glib-GIO-ERROR”.

Hopefully this will work for you.

#11

Hi
Probably it didn’t compile the schema…?

I have created a copy in my home testing repo, it’s enabled for Nvidia GPU’s as well, but did a ‘special’ build for my AMD system.

https://build.opensuse.org/package/show/home:malcolmlewis:TESTING/psensor

openSUSE Tumbleweed (Intel gpu);

http://thumbnails108.imagebam.com/41714/7a1067417132782.jpg](http://www.imagebam.com/image/7a1067417132782)

SLED 12 (AMD APU);

http://thumbnails108.imagebam.com/41714/ac033b417132785.jpg](http://www.imagebam.com/image/ac033b417132785)

I use conky for all my monitoring… :wink:

#12

HELLO

THANK YOU FOR RPM TESTING, for now it’s worked psensor on opensuse, but strange information:

that elementaryos have many sensors detected: see link old screenshot:
http://www.pastefile.com/4nsB7M

instead opensuse with psensor:
http://www.pastefile.com/RyBFeX

see strange:
opensuse: cpu-amd, SSD, HDD -----------missed: radeon, temp1,temp2,temp3,fan-rpm1
elementaryos: cpu-amd,radeon,temp1,temp2,temp3,fan-rpm1 -------missed : SSD, HDD

elementaryos and opensuse are same my PC…

last ask: conky what is theme? i did installed conky but is ugly …
your conky is beatifull…this is information only

#13

Hi
Is the it87 module loaded? As root user;


modprobe it87

On my SLES 12 system, I have an it87 and it works fine…

http://thumbnails108.imagebam.com/41731/722334417302742.jpg](http://www.imagebam.com/image/722334417302742)

For conky, from memory it was a mint one, but I moved to a horizontal orientation as I use tilda as my terminal of choice so can use that and still see the information.
