Screen boundaires issue on multimonitor system

Hi ,
i have 2 extra monitors attached to my laptop connected though a usb3 docking station.
when i set an application full screen on “middle position” monitor , i can see a part of that application on the left monitor which is the laptop screen.
i changed resolution but the issue is still there.
i don’t know where to look

Thanks!
ps : i’m using amy-lignt-global-6 Theme
pps : sorry if i’m in the wrong topic, i can move if required

here are the various information on my system:

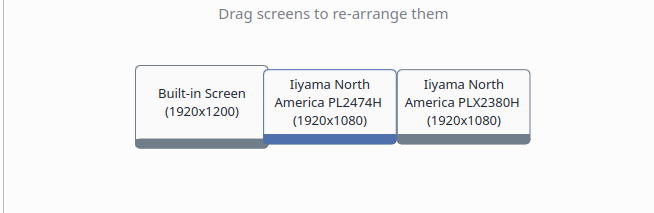

Screen configuration

The overflowed window

inxi -GSaz
System:
  Kernel: 6.13.0-1-default arch: x86_64 bits: 64 compiler: gcc v: 14.2.1
    clocksource: tsc avail: acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-6.13.0-1-default
    root=UUID=46ec8d5f-079e-4094-b574-f29c2e11aaa0 splash=silent preempt=full
    quiet security=apparmor mitigations=auto
  Desktop: KDE Plasma v: 6.2.5 tk: Qt v: N/A info: frameworks v: 6.9.0
    wm: kwin_x11 tools: avail: xscreensaver vt: 2 dm: SDDM Distro: openSUSE
    Tumbleweed-Slowroll 20250101
Graphics:
  Device-1: Intel Alder Lake-UP3 GT2 [UHD Graphics] vendor: Hewlett-Packard
    driver: i915 v: kernel alternate: xe arch: Xe process: Intel 10nm
    built: 2020-21 ports: active: DP-5,DP-6,eDP-1 empty: DP-1, DP-2, DP-3,
    DP-4, DP-7, HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:4628 class-ID: 0300
  Device-2: Chicony HP 5MP Camera driver: uvcvideo type: USB rev: 2.0
    speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-1:2 chip-ID: 04f2:b738
    class-ID: fe01 serial: <filter>
  Device-3: Microdia Webcam Vitade AF driver: snd-usb-audio,uvcvideo
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-2.3.4.1:15
    chip-ID: 0c45:6366 class-ID: 0102 serial: <filter>
  Display: x11 server: X.Org v: 21.1.15 with: Xwayland v: 24.1.4
    compositor: kwin_x11 driver: X: loaded: modesetting unloaded: vesa
    alternate: fbdev,intel dri: iris gpu: i915 display-ID: :0 screens: 1
  Screen-1: 0 s-res: 5680x1200 s-dpi: 96 s-size: 1500x317mm (59.06x12.48")
    s-diag: 1533mm (60.36")
  Monitor-1: DP-5 mapped: DP-1-1 pos: bottom-r model: Idek Iiyama PLX2380H
    serial: <filter> built: 2014 res: mode: 1920x1080 hz: 60 scale: 100% (1)
    dpi: 96 gamma: 1.2 size: 509x286mm (20.04x11.26") diag: 584mm (23")
    ratio: 16:9 modes: max: 1920x1080 min: 720x400
  Monitor-2: DP-6 mapped: DP-1-2 pos: bottom-c model: Idek Iiyama PL2474H
    built: 2017 res: mode: 1920x1080 hz: 75 scale: 100% (1) dpi: 94 gamma: 1.2
    size: 521x293mm (20.51x11.54") diag: 598mm (23.5") ratio: 16:9 modes:
    max: 1920x1080 min: 720x400
  Monitor-3: eDP-1 pos: primary,top-left model: BOE Display 0x0a02
    built: 2021 res: mode: 1920x1200 hz: 60 scale: 100% (1) dpi: 141 gamma: 1.2
    size: 345x215mm (13.58x8.46") diag: 407mm (16") ratio: 16:10
    modes: 1920x1200
  API: EGL v: 1.5 hw: drv: intel iris platforms: device: 0 drv: iris
    device: 1 drv: swrast gbm: drv: iris surfaceless: drv: iris x11: drv: iris
    inactive: wayland
  API: OpenGL v: 4.6 compat-v: 4.5 vendor: intel mesa v: 24.3.3 glx-v: 1.4
    direct-render: yes renderer: Mesa Intel Graphics (ADL GT2)
    device-ID: 8086:4628 memory: 15.13 GiB unified: yes
  API: Vulkan v: 1.4.304 layers: 1 device: 0 type: integrated-gpu name: Intel
    Graphics (ADL GT2) driver: N/A device-ID: 8086:4628 surfaces: xcb,xlib
  Info: Tools: api: eglinfo, glxinfo, vulkaninfo
    de: kscreen-console,kscreen-doctor wl: wayland-info
    x11: xdpyinfo, xprop, xrandr
kscreen-doctor -o
Output: 66 eDP-1
        enabled
        connected
        priority 1
        Panel
        Modes:  76:1920x1200@60*!  77:1920x1200@60  78:1920x1200@60  79:1920x1200@40  80:1920x1080@60  81:1920x1080@60  82:1920x1080@60  83:1920x1080@60  84:1600x1200@60  85:1680x1050@60  86:1680x1050@60  87:1400x1050@60  88:1600x900@60  89:1600x900@60  90:1600x900@60  91:1600x900@60  92:1280x1024@60  93:1400x900@60  94:1400x900@60  95:1280x960@60  96:1440x810@60  97:1440x810@60  98:1368x768@60  99:1368x768@60  100:1280x800@60  101:1280x800@60  102:1280x800@60  103:1280x800@60  104:1280x720@60  105:1280x720@60  106:1280x720@60  107:1280x720@60  108:1024x768@60  109:1024x768@60  110:960x720@60  111:928x696@60  112:896x672@60  113:1024x576@60  114:1024x576@60  115:1024x576@60  116:1024x576@60  117:960x600@60  118:960x600@60  119:960x540@60  120:960x540@60  121:960x540@60  122:960x540@60  123:800x600@60  124:800x600@60  125:800x600@56  126:840x525@60  127:840x525@60  128:864x486@60  129:864x486@60  130:700x525@60  131:800x450@60  132:800x450@60  133:640x512@60  134:700x450@60  135:700x450@60  136:640x480@60  137:640x480@60  138:720x405@60  139:720x405@59  140:684x384@60  141:684x384@60  142:640x400@60  143:640x400@60  144:640x360@60  145:640x360@60  146:640x360@60  147:640x360@59  148:512x384@60  149:512x288@60  150:512x288@60  151:480x270@60  152:480x270@60  153:400x300@60  154:400x300@56  155:432x243@60  156:432x243@60  157:320x240@60  158:360x202@60  159:360x202@59  160:320x180@60  161:320x180@59
        Geometry: 0,0 1920x1200
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 67 HDMI-1
        disabled
        disconnected
        priority 0
        HDMI
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 68 DP-1
        disabled
        disconnected
        priority 0
        DisplayPort
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 69 DP-2
        disabled
        disconnected
        priority 0
        DisplayPort
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 70 DP-3
        disabled
        disconnected
        priority 0
        DisplayPort
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 71 DP-4
        disabled
        disconnected
        priority 0
        DisplayPort
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 72 DP-1-1
        enabled
        connected
        priority 2
        DisplayPort
        Modes:  86:1680x1050@60  92:1280x1024@60  95:1280x960@60  109:1024x768@60  124:800x600@60  125:800x600@56  137:640x480@60  162:1920x1080@60*!  163:1920x1080@50  164:1920x1080@60  165:1280x1024@75  166:1440x900@75  167:1440x900@60  168:1152x864@75  169:1280x720@60  170:1280x720@50  171:1280x720@60  172:1440x576@50  173:1024x768@75  174:1024x768@70  175:800x600@75  176:720x576@50  177:720x480@60  178:720x480@60  179:640x480@75  180:640x480@67  181:640x480@60  182:720x400@70
        Geometry: 3760,60 1920x1080
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 73 DP-1-2
        enabled
        connected
        priority 3
        DisplayPort
        Modes:  84:1600x1200@60  85:1680x1050@60  92:1280x1024@60  109:1024x768@60  124:800x600@60  125:800x600@56  137:640x480@60  162:1920x1080@60  163:1920x1080@50  164:1920x1080@60  165:1280x1024@75  166:1440x900@75  168:1152x864@75  169:1280x720@60  170:1280x720@50  171:1280x720@60  173:1024x768@75  174:1024x768@70  175:800x600@75  176:720x576@50  177:720x480@60  178:720x480@60  179:640x480@75  180:640x480@67  181:640x480@60  182:720x400@70  183:1920x1080@75*!  184:1600x900@60  185:1440x900@60  186:832x624@75  187:800x600@72  188:640x480@73
        Geometry: 1840,60 1920x1080
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported
Output: 74 DP-1-3
        disabled
        disconnected
        priority 0
        DisplayPort
        Modes:
        Geometry: 0,0 0x0
        Scale: 1
        Rotation: 1
        Overscan: 0
        Vrr: incapable
        RgbRange: unknown
        HDR: incapable
        Wide Color Gamut: incapable
        ICC profile: incapable
        Color profile source: incapable
        Brightness control: unsupported

Blockquote

I’ll move it to the Hardware category.

The middle and RH monitor both seem to be offset incorrectly…

I would have expected (non-overlapping) horizontal offsets of 1920 and 3840 respectively. In any case, can you correct this by dragging the displays slightly in the Plasma display configuration utility?

You can also see the offset directly in the disply configuration utility when you left click the monitor icon and hold the mouse button. This helps to align the displays properly.
Bildschirmfoto_20250202_235704

Bildschirmfoto_20250203_000108

1 Like

Hi ,
Thanks for the suggestions ,

After fiddling with display configuration screens positions , and try to move the screens to see the coordinates , i decided to cancel my modifications and then on next reload of the display configuration screen , i saw the offending screen overlapping the other.
I don’t know why it didn’t appeared before but i cannot reproduce the issue.

The issue is now gone
Thank you

Screenshot_20250203_084626

Thanks for the update.
