howto HP Laserjet 4 / JetDirect with fixed ip 192.168.0.231

English Hardware
1

howto configur a HP Laserjet 4 with JetDirect / with fixed ip 192.168.0.231 i tried URI but that does not work, i don’t know why it does not work can semewone help me out?
greetz
linda

mails are welkom bondgirl2170(at)gmail.com

thanks verry much

Linda

2

In the YaST Printer setup select network printer, select the printer model, protocol is AppSocket/JetDirect, then fill in the IP address. Easy!

3

bondgirl 2170 wrote:

> howto configur a HP Laserjet 4 with JetDirect / with fixed ip
> 192.168.0.231 i tried URI but that does not work, i don’t know why it
> does not work can semewone help me out?

All our jetdirect printers are setup with “ipp://192.168.0.49” using cups
web page (http://localhots:631)

THT

Greetings,

–
Camaleón

4

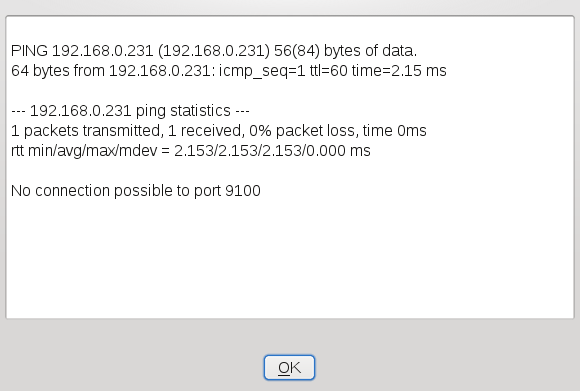

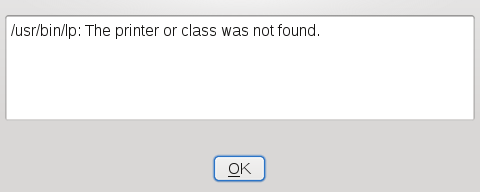

http://i14.photobucket.com/albums/a332/bondgirl_2170/opensuse11_2/yast2-002.png
http://i14.photobucket.com/albums/a332/bondgirl_2170/opensuse11_2/yast2-001.png

that’s wat it say’s how can i fix that?

5

bondgirl 2170 wrote:

> [image:
>
http://i14.photobucket.com/albums/a332/bondgirl_2170/opensuse11_2/yast2-002.png]
> [image:
>
http://i14.photobucket.com/albums/a332/bondgirl_2170/opensuse11_2/yast2-001.png]
>
> that’s wat it say’s how can i fix that?

I have not tested opensuse 11.2 (it’s a beta release) yet but anyway, your
second image shows a connection problem on that port.

What are the capabilities of your jetdirect card? Is port 9100 enabled?

On our printer web page setup (you can enter by
typing “http://192.168.0.231” in your browser), I can see the following
services enabled:

[x] Config SLP
[x] Config Telnet
[x] mDNS
[x] Printing via 9100 port
[x] Printing via FTP
[x] Printing via LPD
[x] printing via IPP

Do you have the corresponding ports enabled?

Greetings,

–
Camaleón

6

that seems to be the problem :frowning: i can not reach it :frowning:


Any suggestions? i’ll beback tomorrow from i think 9AM (GMT+1)

and thank you to all who helped :smiley: or read :smiley:

greetz
linda

7

sounds like a firewall (or even routing?) problem…

8

bondgirl 2170 wrote:

> that seems to be the problem :frowning: i can not reach it :frowning:
>
> ‘schermafdruk1.png’ (http://tinyurl.com/kva6ay)
>
> Any suggestions? i’ll beback tomorrow from i think 9AM (GMT+1)
>
> and thank you to all who helped :smiley: or read :smiley:

O.k… If you can’t connect to the printer setup page could be for some
reasons:

  • Jetdirect network adapter has not enabled that capability, maybe because
    of it’s an old printer and has no embedded web server.

You can test from another computer in the network and check if connecting
from other client is working.

If you get into the printer’s configuration web page, then jetdirect
capabilities are not the problem :slight_smile:

  • Another possibility could be some firewall setting that impedes your
    computer to reach the printer. Just try to stop firewall service
    (rcSuSEfirewall2 stop) and try again.

OTHO, besides ipp:// protocol, you can also try with “ldp://192.168.0.231”
or “socket://192.168.0.231”.

You can see all available options under
http://localhost:631/help/network.html

Greetings,

–
Camaleón

9

ldp://192.168.0.231 => this method works! thanks for the help! it realy helped me out! big kiss to all!

i also stopped the firewall, will it be on again when i reboot?

greetz
Linda

10

bondgirl 2170 wrote:

> ldp://192.168.0.231 => this method works! thanks for the help! it realy
> helped me out! big kiss to all!

Great! :slight_smile:

> i also stopped the firewall, will it be on again when i reboot?

Yes, if you just stopped the service, it will be enabled after reboot.

Anyway, you can start it again by running: “rcSuSEfirewall2 start”

Greetings,

–
Camaleón

11

I assume you actually meant LPD.

So it seems that your JetDirect printer isn’t set to use JetDirect (port 9100) but uses LPD instead.
