Thread: 2017 MBP Unable to connect to 5 Ghz networks

  1. #1

    Default 2017 MBP Unable to connect to 5 Ghz networks

    Just started giving a modern desktop linux distro a shot. Using a Mac Book Pro from 2017, and while almost everything was up and running quickly, I'm having trouble with my wifi card. It partially works but is not picking up 5 Ghz signals.

    Asking around in some communities someone found https://wiki.archlinux.org/title/bro...:43ba)_devices which included the following:

    Issue appears to be linked to a channel issue. Changing the wireless channel to a lower channel number (like 40 or, if your router show MHz instead of channel numbers, like 5200 MHz or 5280 MHz) seems to allow connection to 5GHz bands. If your router has the same SSID for the 2.4GHZ and 5GHZ, this can fix problems with your wireless connection being unstable or very slow.
    While I did switch my router to 40 and the width to 40 MHz, it's still not listed in the wifi networks I can connect to.

    Confirming card mentioned by article:

    Code:
    eccentric-j@localhost:~> sudo hwinfo --wlan --short
    network:
      wlp3s0               Broadcom BCM43602 802.11ac Wireless LAN SoC

    Is there any solutions out there to fix support for 5 Ghz networks?

    Tried running
    Code:
    sudo /usr/sbin/install_bcm43xx_firmware

    But do not notice any difference.

    Any help would be appreciated!




  2. #2
    Join Date
    Mar 2011
    Location
    Sauerland
    Posts
    7,315

    Default AW: 2017 MBP Unable to connect to 5 Ghz networks

    Does broadcom-wl from Packman work?

  3. #3

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Thanks! I'm trying that now but really new to desktop linux.

    I found this post about how to add the Packman repositories https://forums.opensuse.org/showthre...l-Pacman-repos and that part is done.

    However, not sure what the next step is. I ran `sudo zypper in broadcom-wl`, but first I tried to find it in the Discover app which didn't work.

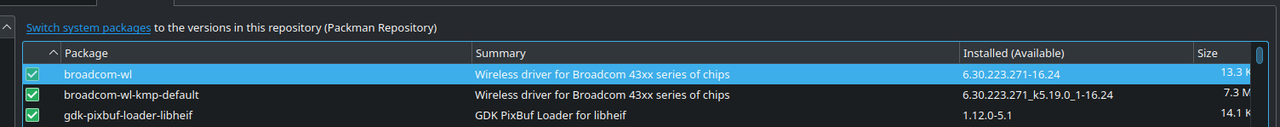

    That seemed to work as it's now listed in YaST > Software Management



    I take it the next step would be to restart and see if that fixes the issue?

  4. #4

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    After restart: Seems like nothing has changed. The only networks listed are around ~2.5 Ghz frequency instead of the 5 Ghz network broadcast from 3 ft away.

    Any other options come to mind? Maybe I need to uninstall the previous driver?

  5. #5

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Couldn't edit previous post, asked around and learned about the `dmesg` and `journalctl` commands:

    Code:
    ay@localhost:~> journalctl -b | grep brcmfmac
    Hint: You are currently not seeing messages from other users and the system.
          Users in the 'systemd-journal' group can see all messages. Pass -q to
          turn off this notice.
    jay@localhost:~> sudo journalctl -b | grep brcmfmac
    [sudo] password for root:
    Aug 13 15:20:47 localhost kernel: usbcore: registered new interface driver brcmfmac
    Aug 13 15:20:47 localhost kernel: brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43602-pcie for chip BCM43602/2
    Aug 13 15:20:47 localhost kernel: brcmfmac 0000:03:00.0: Direct firmware load for brcm/brcmfmac43602-pcie.Apple Inc.-MacBookPro13,3.bin failed with error -2
    Aug 13 15:20:47 localhost kernel: brcmfmac 0000:03:00.0: Direct firmware load for brcm/brcmfmac43602-pcie.Apple Inc.-MacBookPro13,3.txt failed with error -2
    Aug 13 15:20:47 localhost kernel: brcmfmac 0000:03:00.0: Direct firmware load for brcm/brcmfmac43602-pcie.txt failed with error -2
    Aug 13 15:20:47 localhost kernel: brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43602-pcie for chip BCM43602/2
    Aug 13 15:20:47 localhost kernel: brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available
    Aug 13 15:20:47 localhost kernel: brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM43602/2 wl0: Nov 10 2015 06:38:10 version 7.35.177.61 (r598657) FWID 01-ea662a8c
    Aug 13 15:20:48 localhost kernel: brcmfmac 0000:03:00.0 wlp3s0: renamed from wlan0
    Aug 13 15:20:48 localhost.localdomain NetworkManager[1231]: <info>  [1660418448.3904] rfkill0: found Wi-Fi radio killswitch (at /sys/devices/pci0000:00/0000:00:1c.0/0000:03:00.0/ieee802
    11/phy0/rfkill0) (driver brcmfmac)
    jay@localhost:~> sudo journalctl -b | grep Wi-Fi
    Aug 13 15:20:48 localhost.localdomain NetworkManager[1231]: <info>  [1660418448.3904] rfkill0: found Wi-Fi radio killswitch (at /sys/devices/pci0000:00/0000:00:1c.0/0000:03:00.0/ieee802
    11/phy0/rfkill0) (driver brcmfmac)
    Aug 13 15:20:48 localhost.localdomain NetworkManager[1231]: <info>  [1660418448.3908] manager[0x55db0df0d010]: rfkill: Wi-Fi hardware radio set enabled
    Aug 13 15:20:48 localhost.localdomain NetworkManager[1231]: <info>  [1660418448.3980] manager: rfkill: Wi-Fi enabled by radio killswitch; enabled by state file
    Aug 13 15:20:48 localhost.localdomain NetworkManager[1231]: <info>  [1660418448.4047] manager: (wlp3s0): new 802.11 Wi-Fi device (/org/freedesktop/NetworkManager/Devices/2)
    Aug 13 15:20:49 localhost.localdomain NetworkManager[1231]: <info>  [1660418449.1788] Wi-Fi P2P device controlled by interface wlp3s0 created
    Aug 13 15:20:49 localhost.localdomain NetworkManager[1231]: <info>  [1660418449.1790] manager: (p2p-dev-wlp3s0): new 802.11 Wi-Fi P2P device (/org/freedesktop/NetworkManager/Devices/4)
    jay@localhost:~> open /org/freedesktop
    If 'open' is not a typo you can use command-not-found to lookup the package that contains it, like this:
        cnf open



    This line seems especially relevant:
    Code:
    Aug 13 15:20:47 localhost kernel: brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available

  6. #6
    Join Date
    Jun 2008
    Location
    East of Podunk
    Posts
    33,365
    Blog Entries
    15

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Hi
    The brcmfmac module should be blacklisted (and others) when installing the broadcom-wl package and equivalent kmp package with a file in `/etc/modprobe.d/50-broadcom-wl-blacklist.conf` does this file exist, if so, as root user run the command `mkinitrd` and reboot.
    Cheers Malcolm °¿° SUSE Knowledge Partner (Linux Counter #276890)
    SUSE SLE, openSUSE Leap/Tumbleweed (x86_64) | GNOME DE
    If you find this post helpful and are logged into the web interface,
    please show your appreciation and click on the star below... Thanks!

  7. #7

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Thanks! I was able to fix this but will do those steps anyway just to make sure. A kind soul on the doom emacs discord server used my problem as an excuse to learn more about the kernel modules and was able to help find a solution.

    https://bugzilla.kernel.org/show_bug.cgi?id=193121

    It comes down to the particular WiFi chip I have, Broadcom 43602 just not really being really well supported by the firmware itself. Fortunately, someone came up with a workaround in the form of a config file that can be copied into the `/lib/firmware/brcm/`. Instructions may be found near the bottom of that link:

    https://bugzilla.kernel.org/show_bug.cgi?id=193121#c74
    Which is a small enhancement on top of https://bugzilla.kernel.org/show_bug.cgi?id=193121#c62.

    With that latest text file copied to `/lib/firmware/brcm/` and a reboot I am now able to connect to my 5 Ghz network and see many more networks in the list.

    As for why those changes and others are not upstreamed, correspondence earlier in the discussion https://bugzilla.kernel.org/show_bug.cgi?id=193121#c23 provide some insight:

    The firmware update is not an easy task as it updates regulatory data in firmware it means a full verification cycle is required to assure the power levels stay within regulatory limits. This is always a hard sell for us as there is no return of investment for the engineering costs involved. Hence we release fullmac firmware that has been verified in running projects. Sadly the 43602 in the MacBook does not use a fullmac driver architecture so there is no fullmac firmware available. I have forwarded your request, but no high hopes we can resolve this.

  8. #8
    Join Date
    Jun 2008
    Location
    East of Podunk
    Posts
    33,365
    Blog Entries
    15

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Quote Originally Posted by eccentric-J View Post
    Thanks! I was able to fix this but will do those steps anyway just to make sure. A kind soul on the doom emacs discord server used my problem as an excuse to learn more about the kernel modules and was able to help find a solution.

    https://bugzilla.kernel.org/show_bug.cgi?id=193121

    It comes down to the particular WiFi chip I have, Broadcom 43602 just not really being really well supported by the firmware itself. Fortunately, someone came up with a workaround in the form of a config file that can be copied into the `/lib/firmware/brcm/`. Instructions may be found near the bottom of that link:

    https://bugzilla.kernel.org/show_bug.cgi?id=193121#c74
    Which is a small enhancement on top of https://bugzilla.kernel.org/show_bug.cgi?id=193121#c62.

    With that latest text file copied to `/lib/firmware/brcm/` and a reboot I am now able to connect to my 5 Ghz network and see many more networks in the list.

    As for why those changes and others are not upstreamed, correspondence earlier in the discussion https://bugzilla.kernel.org/show_bug.cgi?id=193121#c23 provide some insight:
    Hi
    If you going to use the brmc module(s), then you don't want the broadcom-wl items installed or that blacklist file... once removed make sure to run `mkinitrd` to ensure the brmc module(s) are not blacklisted.
    Cheers Malcolm °¿° SUSE Knowledge Partner (Linux Counter #276890)
    SUSE SLE, openSUSE Leap/Tumbleweed (x86_64) | GNOME DE
    If you find this post helpful and are logged into the web interface,
    please show your appreciation and click on the star below... Thanks!

  9. #9

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Ok I will try uninstalling broadcom-wl.

    Not sure if it's important but looking at the blacklist https://pmbs.links2linux.de/package/...klist?expand=1

    It only targets brcmsmac not brcmfmac

    EDIT: Confirmed after uninstalling broadcom-wl the fix still works.

    In that case does that mean broadcom-wl drivers were never actually used?

  10. #10
    Join Date
    Jun 2008
    Location
    East of Podunk
    Posts
    33,365
    Blog Entries
    15

    Default Re: 2017 MBP Unable to connect to 5 Ghz networks

    Quote Originally Posted by eccentric-J View Post
    Ok I will try uninstalling broadcom-wl.

    Not sure if it's important but looking at the blacklist https://pmbs.links2linux.de/package/...klist?expand=1

    It only targets brcmsmac not brcmfmac

    EDIT: Confirmed after uninstalling broadcom-wl the fix still works.

    In that case does that mean broadcom-wl drivers were never actually used?
    Hi
    Correct, not used at all...
    Cheers Malcolm °¿° SUSE Knowledge Partner (Linux Counter #276890)
    SUSE SLE, openSUSE Leap/Tumbleweed (x86_64) | GNOME DE
    If you find this post helpful and are logged into the web interface,
    please show your appreciation and click on the star below... Thanks!
